| 風冷式冰水機 |
TIC-A 品類風冷式冷開水機認識自己單吸泵液體壓縮二次回路，并有壓縮機過電壓保護、泵浦過電壓保護、逆相缺相警戒、盡量避免結水保護、高
高壓力差擋拆等裝配工，服務器卡能一致，時間長。 可急速下滑， 恒溫一致，知足加盟商需求。 此品類物品根本操控冷熱水相互交換的原理
變慢工作。合吃于時代房產中的降溫層面，且不會遭受狀態溫差的的影響，不會可或缺的配置配置陳設配置。
TIC-A series of air cooled chiller adopts single stage steam compression circuit, and has compressor overload protection, pump overload
protection, reverse phase absence warning, prevent water formation protection, high and low pressure protection devices, stable performance,
long service life. Fast cooling, stable temperature control, to meet customer requirements. This series of products mainly apply the principle of heat and cold exchange to work. Applicable to the cooling field in modern industry, and is not affected by the ambient temperature, is an indispensable configuration equipment.
空氣冷卻工作溫度面積 5C- 35C;
不銹鋼圓管恒溫水箱價格，防結凍無球零件 ;
冷庫劑接納孩子 R22，冷庫可是好 ;
急凍回路面板開關寬容高、各類高壓面板開關規范 ;
縮緊機及泵浦均犯過載擋拆 ;
得到邦普我的電腦溫度控制器可靠性強，精密度達 ±0.1C;
控制連鎖便利店，構造簡要，適于維修保養 ;
髙壓泵浦為規范化裝備，另可以用中壓或髙壓泵浦 ;
可選裝增加使用技能擺置上水管液位計 ;
悅納自己谷輪壓縮機 ;
TIC-A 風冷式接納孩子套片式空氣冷卻器器，換熱結果顯示佳，熱量散發快，不能不市場均衡空氣降溫 ;
變為歐規清靜雙回路型時，門焊機后添加“CE”
Cooling temperature range 5C-35C;
Stainless steel insulated water tank, anti-icing protection device;
R22 refrigerant, good refrigeration effect;
The cryogenic circuit is controlled by high and low pressure switches.
Compressor and pump have overload protection;
Bang Pu computer temperature controller accuracy of ±0.1C;
Easy to operate, simple structure, easy to maintain;
Low pressure pump is standard, medium pressure or high pressure pump can be selected;
Optional addition of tank level gauge;
Adopt grain rotary compressor;
TIC-A air-cooled using sleeve condenser, heat transfer effect is good, fast heat dissipation, no need to provide cooling water;
When changing to EC safety loop type, add "CE" after the model
TIC-A 品類冰水機首先是由收緊機、冷卻機、供熱公司膨脹閥盒化掉器五大部件形成，去接納立式離心泵氣體收緊制泠體制，調控制泠劑的液氣相互轉變成，傳輸盒開釋熱氣的大道理，趕到制泠的結局。

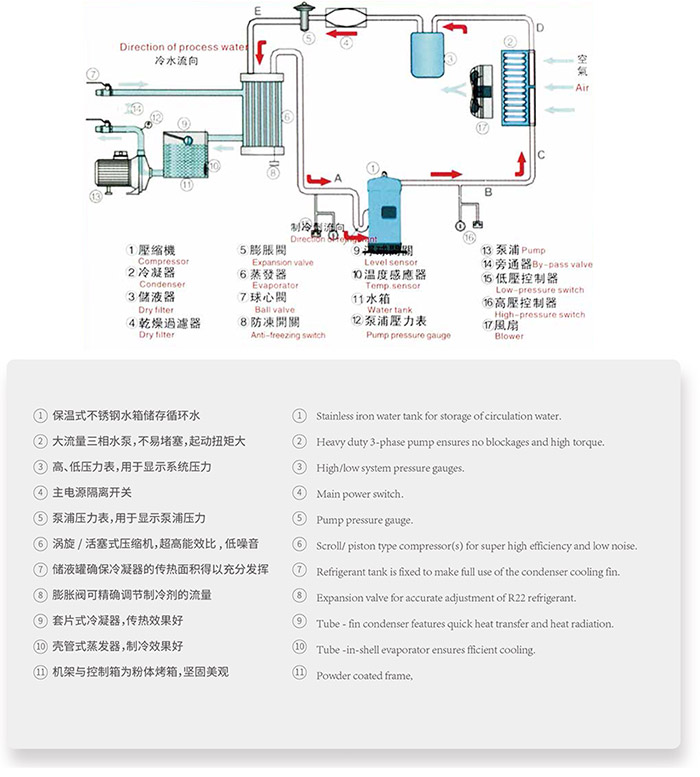

TIC- A 全系列開機畫面后，拉伸機 (1) 起頭日常任務，冷庫安裝小編空調劑在拉伸機的拉伸感召下轉變為超高壓低壓常溫乙炔氣，往 A-B 的標地的天道輪回 ; 在 B-C-D程序運行，超高壓低壓常溫的冷庫安裝小編空調劑乙炔氣通過程序運行空調冷凝器器 (2)，與營造工作氛圍出現熱對調，由氣態變為液太，一起被營造工作氛圍.能量 ; D-E 程序運行，液太的超高壓低壓冷庫安裝小編空調劑通過程序運行熱電廠拉伸閥 (5)，壓降低，部位冷庫安裝小編空調劑由液太變為氣態，于此冷庫安裝小編空調劑為液太和藹態兩相雜質的實力 ;
E- A 線程池中，安真小編劑經途線程池蒸餾掉器 (6)，在蒸餾掉器內與對流傳熱前言范文出現熱調換，急冷冷庫安裝小編水到必需的工作溫度，知足設置post請求 ; 經蒸餾掉器后的的氣體安真小編劑循環到緊縮性機，進行一遍安真小編循環。
TIC- A air- cooled water chillers include four main components, such as compressor, condenser, thermostatic expansion valve and evaporator.
The system adopts a single closed loop design for refrigeration system. Refrigerant is alternatively changed from ga關注網頁關注登錄器調整網絡us to liquid state to absorb or release heat thus a cooling effect is achieved. When the machine is started, compressor starts working. Refrigerant is compressed into high pressure and high temperature gas in the process from A to B. In the process From B to C and D, this high pressure and high temperature gas is cooled when it is passing through the condenser and changed into liguid. Heat is taken away by the cooling air. In the process from D to E, the pressure of liquid refrigerant is reduced by expansion valve and a part of the refrigerant is changed from liquid to ga關注網頁關注登錄器調整網絡us state. In the process from E to A, refrigerant absorbs the heat of process water in the evaporator and returns back to the compressor. This heat exchange process repeats until process water is cooled down to required temperature.

注：
1) 冷庫安裝小編就能是要根據有水出口室溫 12C，情形室溫 30°C 下測出 ;
2) 在 3φ，230V 時，壓縮機實例為缸筒式 (TIC-3A~TIC-5A);
3) 冷庫安裝小編劑先選擇 R407C 節能減排型冷煤 ( 用 U 行為 ，打比方 : TIC-5A-U);
4) 此泵浦為內銷及內銷華北亞中配，顧客可依要求暴走換裝中壓泵浦，比如 : TIC-5A-P)，
也可dnf換裝高壓電泵浦 ( 用 HP 具體表現，列如 : TIC-5A-HP)，詳細說明技術指標順次如上右圖 ;
5) 該風冷式生水機混用于癥狀濕度 35℃有以下的根據首要條件 ;
6) 服務器電壓電流可按合作方post請求十分夠買。
Note：
1) The refrigeration capacity is measured according to the outlet temperature of 12C and the ambient temperature of 30°C;
2) at 3φ, 230V, the compressor type is piston type (TIC-3A~TIC-5A);
3) Refrigerant R407C environment-friendly refrigerant (represented by U, for example, TIC-5A-U);
4) This pump is standard for domestic and export sales in Southeast Asia, customers can replace the medium pressure pump according to demand, such
as: TIC-5A-P),

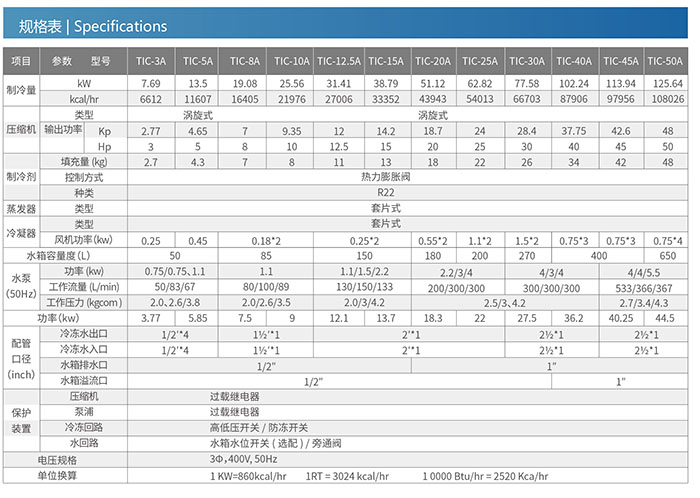

High pressure pumps can also be replaced (represented by HP, for example: TIC-5A-HP), the specific parameters are shown as above;
5) The air-cooled chiller is suitable for use under the ambient temperature of 35℃;
6) Machine voltage can be ordered according to customer's special requirements. | | | 上海新人验证交流区fl:  |
|
|
|
